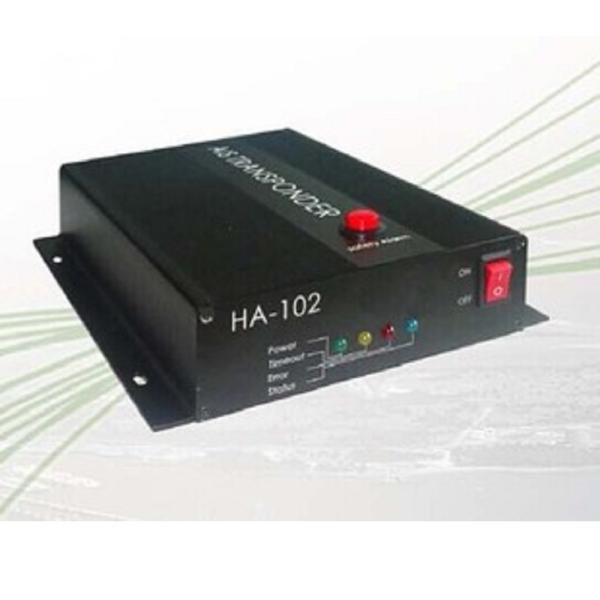

Matsutec HA-102 marine AIS reciever and transmitter Marine ClASS B AIS transponder system with SOS alarm button HA-102

  • 1
  • 2

Brand Name : Matsutec

Model Number : HA-102

Certification : CE

Place of Origin : CHINIA

MOQ : 1

Price : $200-250/set

Payment Terms : T/T, Western Union,paypal

Supply Ability : 10000sets/month

Delivery Time : 3days after payment

Packaging Details : carton box

STANDARDS : IEC 62287-1 ( 2006 ) IEC 61162-1 ( 2000 ) IEC 61162-2 ( 1998 )

VHF RECEIVER Frequency Range : 156.025MHZ ~ 162.025 MHZ

Channel Bandwidth : 25 KHZ

Number of AIS Receivers : 2 Receiver ( one time shared between AIS/DSC ) / 1 Transmitter

CH-1 : Default CH 87B ( 161.975 MHZ )

CH-2 : Default CH 88B ( 162.025 MHZ )

Number of DSC Receiver : 1 ( CH 70)

RX DSC : 156.525 MHZ

Max. Usable Sensitivity : PER less 20% at -107dBm

VHF TRANSMITTER Power Output : 2 Watt ( 33 dBm ±1.5dB )

Modulation : GMSK / FM

Data Rate : 1200 bps ± 30 ppm

Modulation Spectrum : IEC 62287

DSC RECEIVER Modulation : 1300 HZ / 2100 Hz FSK

Spurious Response Rejection : Over 70dB for Signal @ -104dBm; BER less 1%

Blocking : More 84dB for Signal @ -104dBm; BER less 1%

GPS RECEIVER Channels : 12 Channels

Acquisition Sensitivity : -140dBm

Tracking Sensitivity : -150 dBm

Position Accuracy : < 2.5m CEP ( GPS ) without SA

POWER SUPPLY : 12V DC ( 10V ~ 28V )

Fuse : Over Voltage fuse automatic resetting

Power Consumption : Less than 10W

Contact Now

Specifications

marine AIS, AIS system, AIS receiver, AIS, AIS Transmitter, Class B AIS, Class A AIS, AIS products, AIS Transponder

Mutsutec Class B AIS Transponder

Model: HA-102

Matsutec HA-102 marine AIS reciever and transmitter Marine ClASS B AIS transponder system with SOS alarm button HA-102

  1. AIS Transponder with built-in GPS
  2. Self-developed viewer program: Radar & Alphanumeric view
  3. Compatible with major AIS-ready maritime equipments
  4. Anodically treated aluminum housing for extra weather resistance
  5. Manual LON/LAT setting enabled
  6. Dangerous obstacle warning
  7. Friend ship tracking
  8. Switchable transmitting

FEATURES

  1. AIS Transponder with built-in GPS
  2. Self-developed viewer program: Radar & Alphanumeric view
  3. Compatible with major AIS-ready maritime equipments
  4. Anodically treated aluminum housing for extra weather resistance
  5. Manual LON/LAT setting enabled
  6. Dangerous obstacle warning
  7. Friend ship tracking
  8. Switchable transmitting

Specifications

STANDARDS IEC 62287-1 ( 2006 )
IEC 61162-1 ( 2000 )
IEC 61162-2 ( 1998 )

VHF RECEIVER

Frequency Range 156.025MHZ ~ 162.025 MHZ
Channel Bandwidth 25 KHZ
Number of AIS Receivers 2 Receiver ( one time shared between
AIS/DSC ) / 1 Transmitter
CH-1 Default CH 87B ( 161.975 MHZ )
CH-2 Default CH 88B ( 162.025 MHZ )
Number of DSC Receiver 1 ( CH 70)
RX DSC 156.525 MHZ
Max. Usable Sensitivity PER less 20% at -107dBm

VHF TRANSMITTER

Power Output 2 Watt ( 33 dBm ±1.5dB )
Modulation GMSK / FM
Data Rate 9.6K dps / per channel
Modulation Spectrum IEC 62287

DSC RECEIVER

Modulation 1300 HZ / 2100 Hz FSK
Data Rate 1200 bps ± 30 ppm
Spurious Response Rejection Over 70dB for Signal @ -104dBm; BER less 1%
Blocking More 84dB for Signal @ -104dBm; BER less 1%

GPS RECEIVER

Receiving Channels 12 Channels
Acquisition Sensitivity -140dBm
Tracking Sensitivity -150 dBm
Position Accuracy < 2.5m CEP ( GPS ) without SA
Output Rate 1 Hz

POWER SUPPLY

Supply Voltage 12V DC ( 10V ~ 28V )
Fuse Over Voltage fuse automatic resetting
Power Consumption Less than 10W

DISPLAY UNIT

3 Indicator Lights 1) Power / Status Indicator
On the Front Panel 2) Two Tx / Rx Operating Indicator

INTERFACE

Serial Port-1 ( NMEA0183) IEC 61162-1 / 61162-2 with relay Alarm Output
Serial Port-2 RS-232C For PC
GPS Antenna ( Optional ) Female TNC Connector
VHF Antenna ( Optional ) Female Type M Connector
( Type N Connector optional )

WIRELESS CONNECTION

Bluetooth ( Optional )

BIIT ALARM SYSTEM

BIIT Message on display / Relay Alarm Output

ENVIROMENT

Operating Temperature Antenna : -25 ~ 70 C Celcius
Others : -15 ~ 55 C Celcius
Storage Temperature -25 ~ 70 C Celcius
Humidity Operating: 0 ~ 95 RH at 40 C Celcius
GPS Antenna operating : 100% Hermetically sealed
VHF Antenna operating : 100% Hermetically sealed
Vibration IEC 60945
Waterproof IPX5

PHYSICAL

Size in mm ( W ) 103mm ( 140mm with mounting )
Size in mm ( H ) 50mm
Size in mm ( D ) 200mm
Weight

<1 Kg
